How to test a leisure battery by checking its condition and charge level

Before you go on your trip, it’s always a good idea to check that your holiday battery is in good condition. We all know how much of a pain it can be when your battery gives out, leaving you in the dark, your phone charger, and your trusty GPS. The good news is that it’s really easy to check your battery’s health. Just look at its physical condition and how much charge it has left. This guide will walk you through the necessary steps to keep your leisure battery in top shape.

What do you need to know before you start testing?

Before you get started checking your leisure battery, make sure you’ve got all the right tools ready. You’ll need a multimeter, which is also called a digital voltmeter. If your caravan has a built-in voltmeter, that can be really handy as it’ll give you an initial idea of the battery’s charge level. But if you want more accurate readings, it’s best to use a multimeter.

And, of course, always remember that safety is the most important thing. Be sure to wear protective gloves when you’re handling the battery. And please — be really careful not to touch the two battery terminals with anything metal, as this may cause a short circuit.

To get the most accurate reading on the battery’s charge level, it’s important to measure the quiescent voltage. Make sure the battery isn’t being charged or used for at least an hour before testing. It’s best to turn off the caravan’s main switch or disconnect the terminals and leave the battery alone overnight. And finally, if the accumulator has been recently used or charged, let it rest for an hour before testing.

How to test your leisure battery with a multimeter?

Testing your leisure battery isn’t rocket science — you just need a multimeter and a bit of know-how. Here’s how to go about it without frying anything or getting in a muddle:

1. First things first – disconnect the battery.
   You’ll want to make sure the battery’s not connected to anything before testing. So, either flick off the main power switch in your caravan or motorhome, or physically disconnect the battery terminals. Safety first, eh?
2. Set your multimeter to measure DC voltage.
   Look for the setting with a solid line above a dotted line next to a ‘V’ – that’s your DC voltage. Don’t confuse it with the AC setting, or you’ll get a dodgy reading.
3. Pick the right voltage range.
   If you’re testing a standard 12V leisure battery, set the multimeter to something like 20V — you just want to make sure it’s higher than the battery’s rated voltage so you get an accurate reading.
4. Connect the probes – red to positive, black to negative.
   Stick the red probe on the battery’s positive terminal (usually marked with a ‘+’ or a red cap), and the black one on the negative (marked ‘-’ or with black). Easy as that.
5. Check the reading on the screen.
   You should see something like 12.6V if the battery’s in good nick. If you get a negative number, don’t panic — it just means you’ve mixed up the probes. Swap them round and try again.

And that’s it — job done! You’ve now got a pretty good idea of your battery’s state without needing to cart it off to a garage.

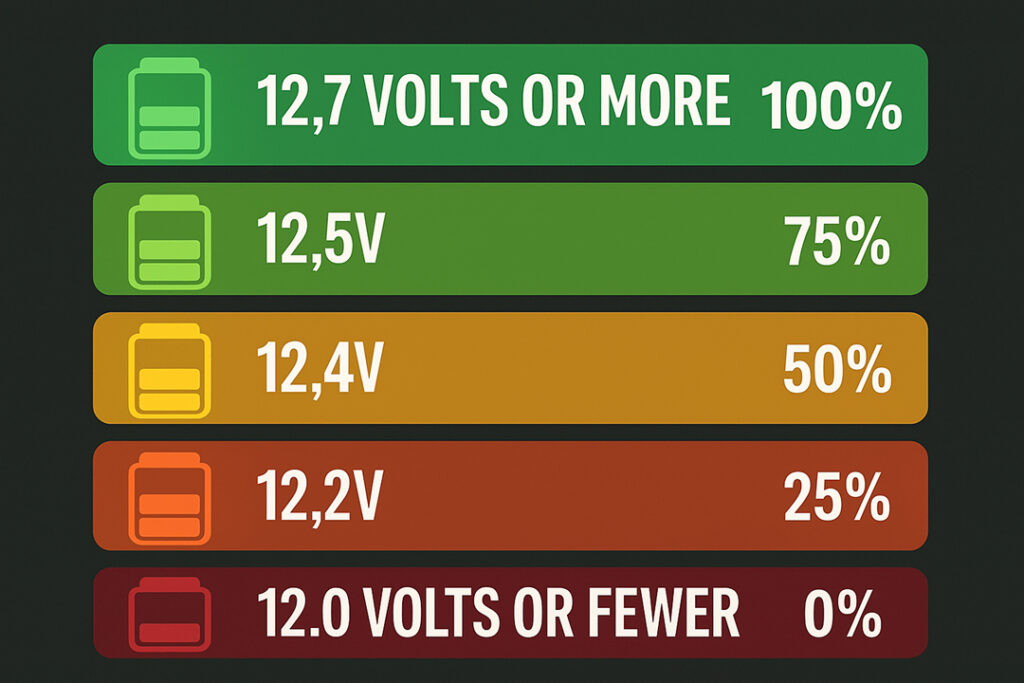

Check a leisure battery voltage

Your multimeter’s voltage reading indicates the charge level of your leisure battery. Here’s how to read voltage readings:

• 12.7 volts or more: indicates a fully charged (100%) battery. Some AGM batteries may show a slightly higher reading, around 12.8 volts.
• 12.5 volts: approximately 75% charge.
• 12.4 volts: approximately 50% charge. If your battery shows a value below this, it is recommended to charge it.
• 12.2 volts: approximately 25% of the charge.
• 12.0 volts or fewer: indicates a low battery.

Below 12 volts, this voltage is classified as deeply discharged, potentially causing irreversible damage. Any voltage below 12V is considered to be too low for a leisure battery. In such situations, it is recommended that you disconnect the accumulator immediately and recharge it using a smart charger. The damage caused by such a deep discharge may be irreversible. Any voltage above 14.4 V may damage the battery cells due to overcharging. The accumulator is typically charged at around 12.9 V.

Check the leisure battery amperage

Right, so if you’re trying to figure out whether your leisure battery can actually handle the load you’re putting on it, you’ll want to check its amperage. That’s basically how much current it can deliver over time. It’s measured in amp-hours (Ah) — think of it like this: a 100Ah battery can technically give you 1 amp of current for 100 hours, or 5 amps for 20 hours. You get the idea.

Here’s how you can check it with a multimeter:

1. First things first — disconnect the battery from anything it’s powering.
2. Set your multimeter to DC mode, and choose a current range that’s higher than what you reckon the battery’s rated for (just to be safe).
3. Plug the red probe into the multimeter’s amp port, and the black one into the COM port.
4. Touch the black probe to the battery’s negative terminal, and the red one to the positive. The display will show you the current.
5. Now, take that reading and compare it with what the manufacturer says it should be. If it’s way off, something’s not quite right.

That said, most people don’t usually bother checking current like this — especially not regularly. It’s more common to check the voltage to get a rough idea of how charged the battery is. Or, even better, use a proper battery tester. Those gadgets put the battery under load and give you a much better picture of its overall health.

If you see the voltage take a big dive under load, and it doesn’t bounce back, chances are your battery’s on its last legs.

Assessing battery condition

It’s not just about the charge level, you know. Giving your battery a proper once-over to check its overall health is just as important. So, pop on some protective gloves and have a thorough look:

• Cracks or swelling in the case – if you spot any bulging or splits, that usually means there’s something dodgy going on inside.
• Funny smells – a sulphurous “rotten egg” pong, especially after charging, might signal a serious problem.
• Liquid in the tray – if you find any fluid, try to work out if it’s just water from outside or if it’s leaking electrolyte. If it’s the latter, it could mean the battery’s had it.
• Battery terminals – make sure they’re clean, corrosion-free, and undamaged. If you see any crusty white or blue-green buildup, disconnect the battery and scrub it off with a wire brush and a mixture of baking soda and hot water.

While you’re at it, have a gander at the battery compartment (or recess), the retaining strap, and any cables. Make sure there’s no damage that could cause grief later on. And if your caravan or motorhome has a ventilation tube, double-check it’s connected properly and not blocked or kinked—otherwise, you could end up with gas buildups, which is never a good thing.

Simple enough, but well worth doing. Catch any little issues now, and you’ll save yourself a world of hassle down the road!

When should you replace your leisure battery?

Aside from the obvious stuff like cracked cases or leaking acid (never a good sign!), there are a few other tell-tale signs that your leisure battery might be on its way out:

• It just won’t hold its charge – even after a full session on the charger, the voltage stays low, or it drains quicker than your phone on a festival weekend.
• Voltage nosedives under load – if you switch something on – like your oven or water pump – and the battery voltage suddenly plummets to around 10V, that’s a solid clue it’s not coping anymore. A quick load test with the right bit of kit can confirm it.
• Dodgy cells – after charging, if some of the cells are giving different voltage readings to the rest, you’ve likely got one or more dead cells. Even if it’s just one, it’s usually best to swap out the whole battery.
• Visible damage – any cracks in the casing, leaks, or battery terminals that are so corroded they look like they’ve been dredged up from the bottom of the sea… it’s time to let it go.

To keep your next battery in good nick for as long as possible, it’s well worth investing in a decent one from the start – and pairing it with a proper smart charger. These clever gadgets help you avoid common battery killers like overcharging and deep discharging, and they keep everything running smoothly. Just make sure you get one that matches your battery type – whether it’s EFB, AGM, or LiFePO4.

Keep an eye on your leisure battery

If you’re keen to avoid any faff while you’re out and about, it’s well worth keeping tabs on your leisure battery. Giving it a regular once-over — checking both its condition and how much charge it’s holding — can save you a real headache down the line.

Spotting any issues early means you’ve got time to sort them, whether that’s topping it up or knowing when it’s time to swap it out for a new one. It’s a quick bit of upkeep that could make all the difference between a smooth trip and being stuck without power when you least expect it.
