Product details

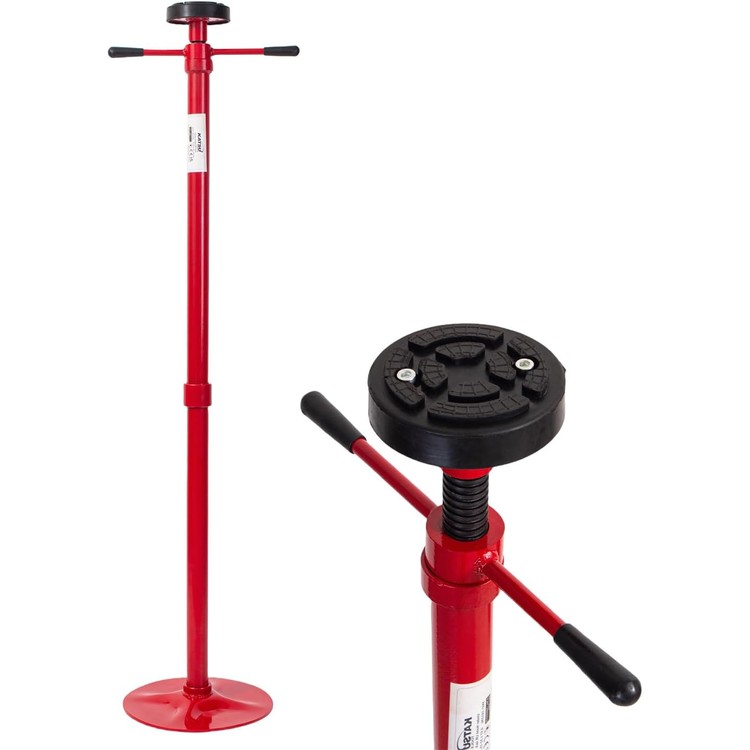

KATSU under hoist stand 0.5 tonne (1,000 lb) — model 161236
Need a straightforward, tough bit of kit to hold components while you work under the car? This KATSU under hoist stand is built for just that — supporting exhausts, sub‑frames, axles, differentials and prop‑shafts while you crack on with the job. It won’t replace axle stands or a full vehicle jack, but it’s brilliant for holding parts steady while you unbolt, swap or tinker.
what it offers

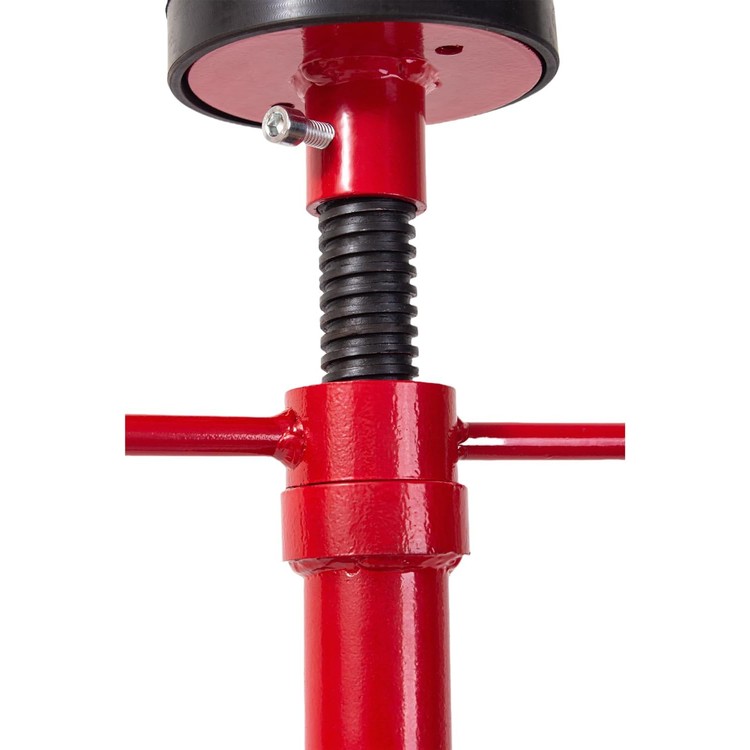

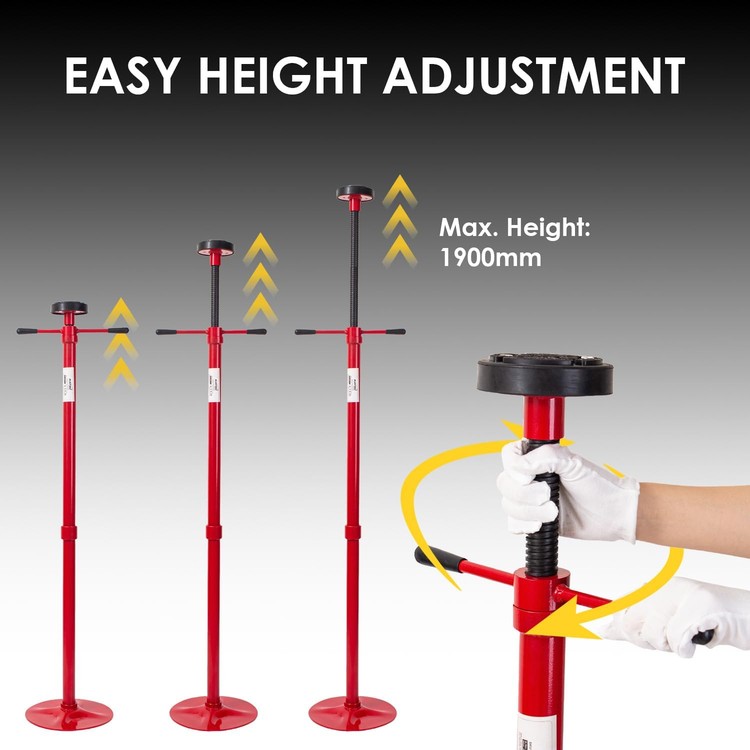

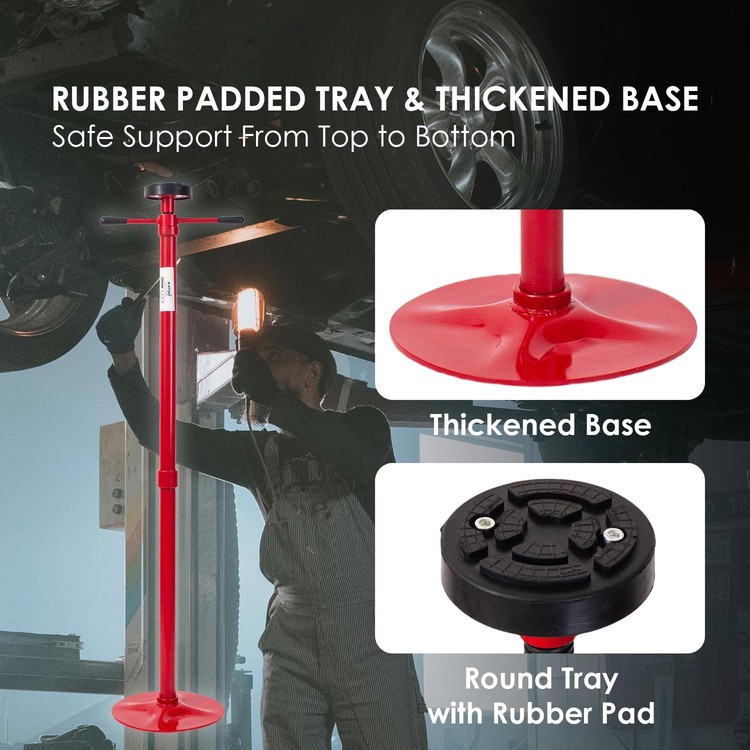

Rated to 0.5 tonne (1,000 lb), the stand adjusts from 1,320 mm up to 1,900 mm, so it covers most under‑hoist work. The round top plate has a rubber coating to reduce slipping and protect softer parts — handy when lifting exhaust sections or delicate brackets. Height is adjusted with a bearing‑mounted spin handle that turns smoothly and predictably, so you can set the right level without faffing about.
technical details and measurements
- The base diameter is 300 mm, giving a stable footprint when positioned under parts.
- Cradle size is 150 mm x 60 mm, suitable for holding pipes and housings steady.
- Minimum height: 1,320 mm; maximum height: 1,900 mm — plenty of reach for most lifts or hoists.
- Item weight: approximately 12.9 kg. Packaged dimensions: approx. 77.5 x 34.5 x 7.9 cm. Model number 161236.
how people use it

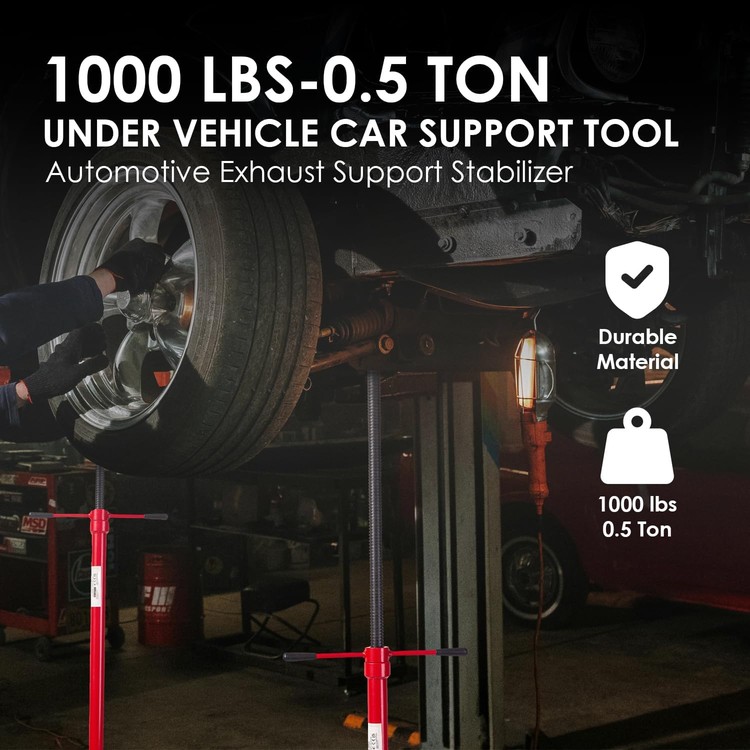

Typical jobs include supporting an exhaust while you unbolt hangers, holding a differential steady during removal, supporting a sub‑frame while you lower bolts, or stabilising a driveshaft. It’s especially useful under a hoist where the vehicle is already supported and you only need temporary support for a component — no more balancing parts on blocks or wrestling with awkward angles.
practical tips and things to know
- Not designed to support the entire vehicle — always use proper axle stands or a full vehicle lift for that.
- Position the top plate centrally under the component for the best stability.

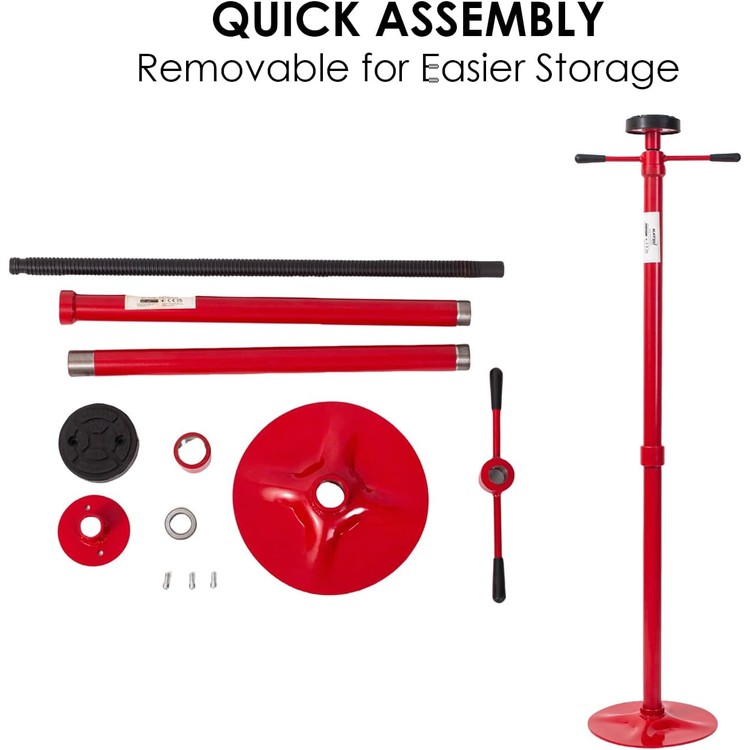

- The base can be removed for storage if space is tight; the stand packs away neatly in a garage corner or van.
- Unsure if the cradle will suit a particular part? Double‑check the dimensions: 150 mm x 60 mm cradle and 300 mm base diameter.
All in all, the KATSU under hoist stand is a practical, no‑nonsense tool for anyone who spends time on under‑vehicle repairs. It saves time, cuts out awkward balancing, and makes jobs safer and less stressful — a tidy addition to any workshop kit if you don’t fancy faffing about with makeshift props.
