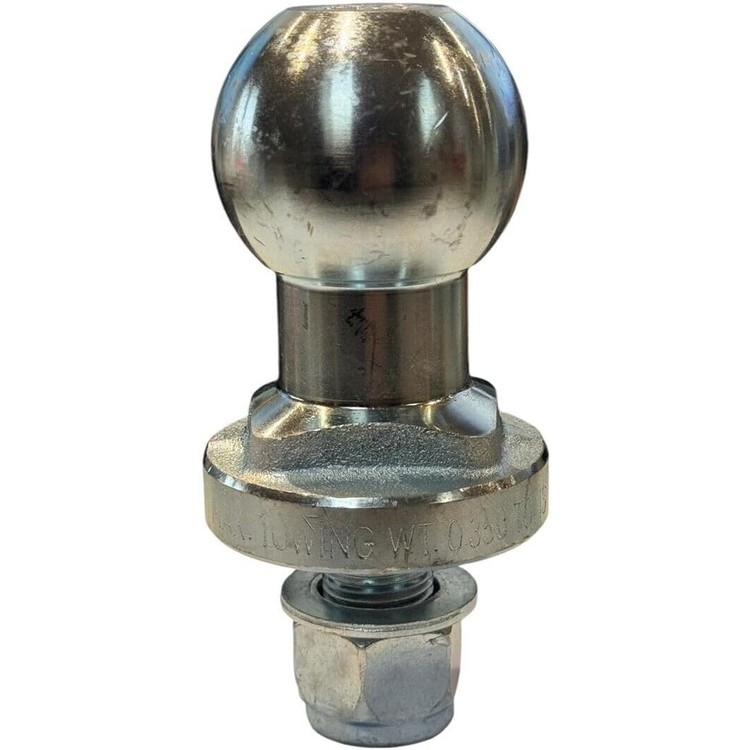

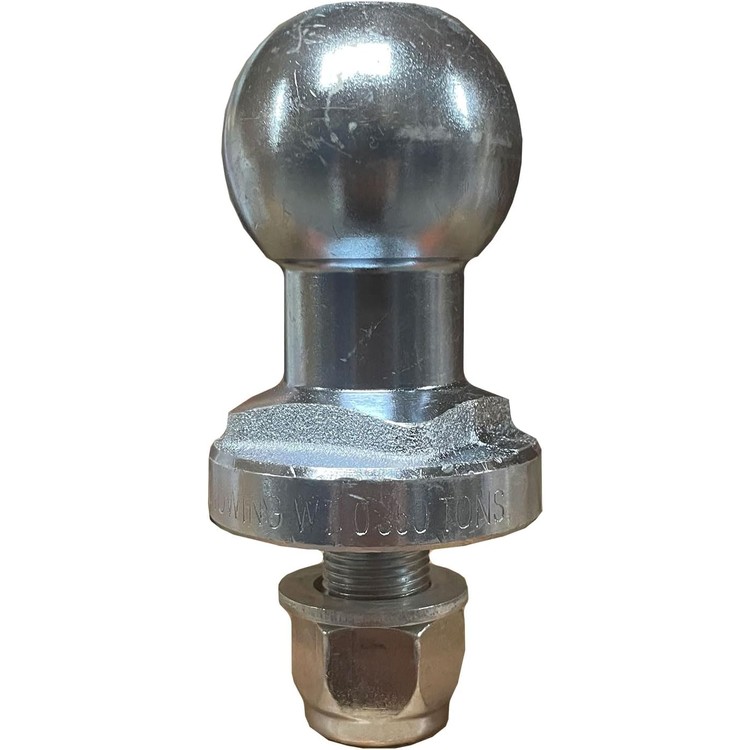

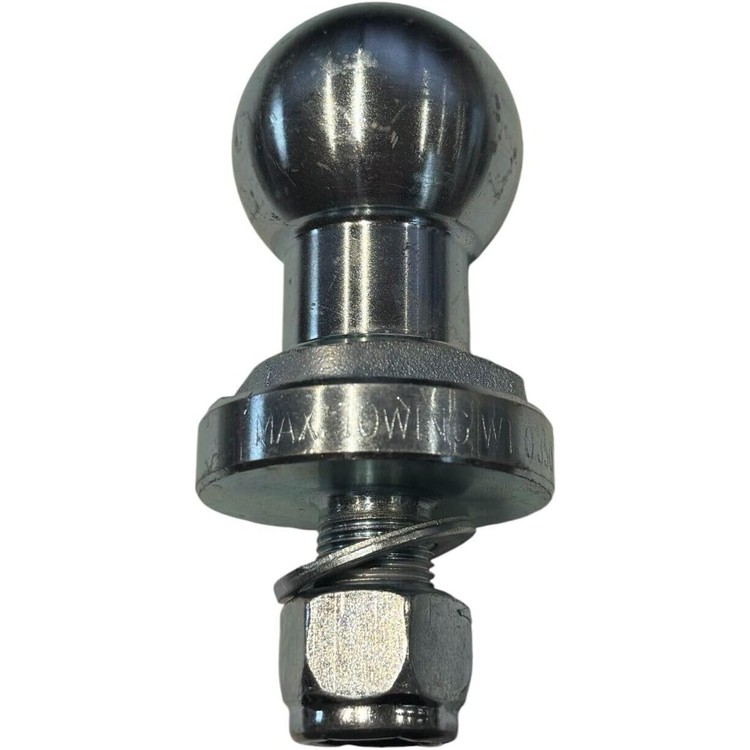

Madpaints 50mm bolt-on tow ball for ATVs – 350kg, 19mm shank
This 50mm bolt-on tow ball is a straightforward, reliable bit of kit for towing small trailers and loads with an ATV. Built tough with a no-nonsense approach, it’s exactly the sort of thing you’d reach for when moving a lawn trailer, small cargo trailer or kit around the yard — nothing flashy, just dependable.
Key features

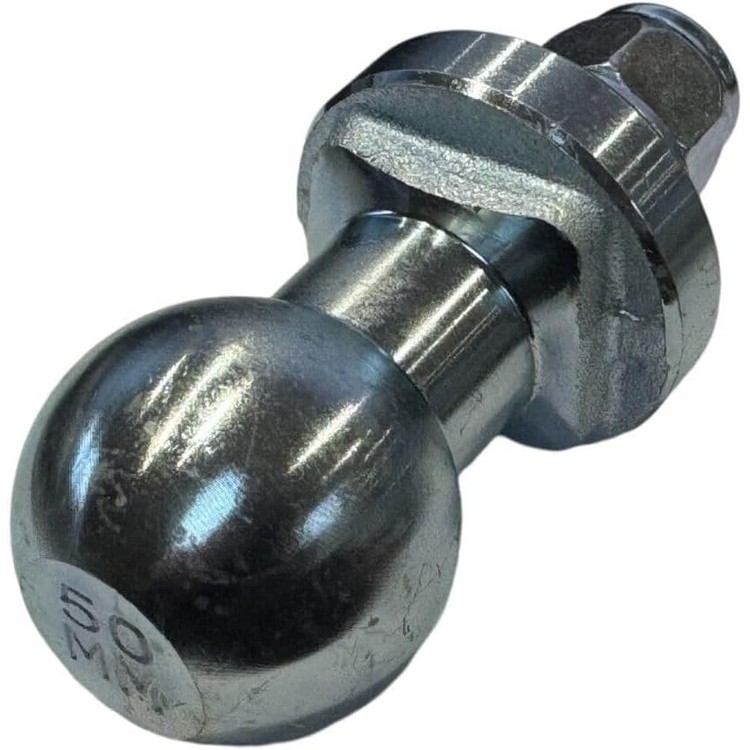

- 50mm ball diameter — works with a wide range of couplings and trailer sockets.
- 19mm shank (3/4 inch) — fits standard ATV and trailer mounts that accept this size.
- Rated 350kg maximum load — ideal for light trailers, quad trailers and small loads.
- Bolt-on attachment — gives a secure, stable connection when fitted correctly.
- Compact and lightweight design — easy to handle and stash away when not in use.

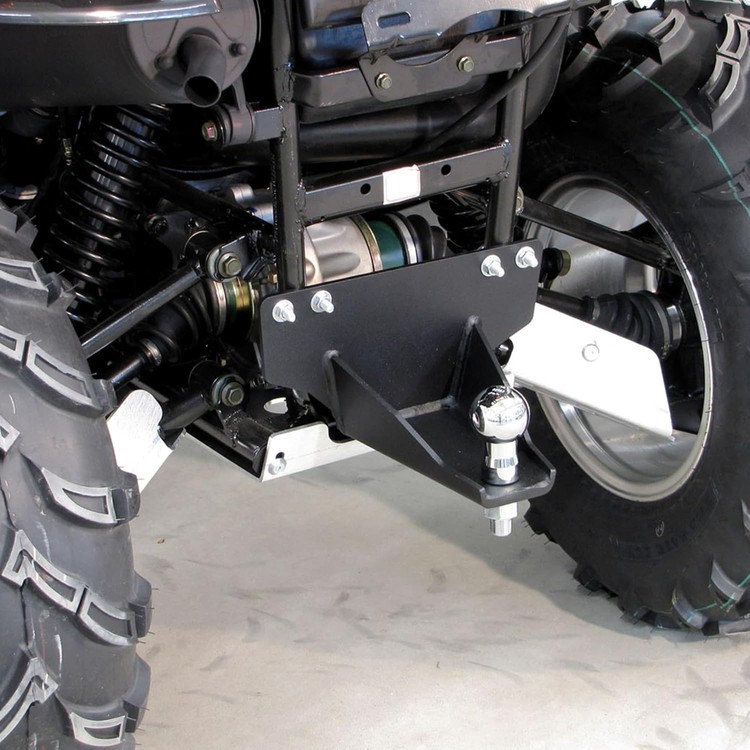

Quick practical note: double-check the mounting plate or receiver on your ATV or trailer to make sure it accepts a 19mm shank, and confirm your trailer coupling is for a 50mm ball. The hitch is bolt-on, so you may need to supply the correct bolts or washers depending on your setup — best to check what’s already on the vehicle before you start, rather than assume extras are included.
Why choose this tow ball?
It’s a tidy, no-fuss solution for light towing. Handy for shifting garden waste, crates or small supplies around a farm, site or garden, the bolt-on design keeps things simple and secure — no faffing about with awkward connectors. That simplicity is worth its weight in gold on slippery, muddy days when you just want the job sorted quickly.
Typical uses
- Pulling small landscaping or garden trailers around a property.
- Attaching utility trailers or quad trailers for weekend jobs.
- Moving light equipment or supplies where a car or truck isn’t practical.
Safety reminder: always ensure the combined weight of trailer plus load does not exceed the 350kg rating, and fit the tow ball with the appropriate bolts tightened to the correct torque. If you’re unsure about fit or load limits, check with a qualified fitter or consult the ATV and trailer manufacturers’ guidelines.
Specifications at a glance:
- Ball diameter: 50 mm
- Shank size: 19 mm (3/4 inch)
- Maximum rated load: 350 kg
- Item weight: 400 g
- Manufacturer: MADPAINTS / M.A.D MYLDAN AUTO DESIGN
All in all, this is a practical tow ball for anyone needing reliable light towing from an ATV or quad. It won’t pretend to be anything fancy — just a sturdy, well-sized bit of kit that helps get the job done.
