Product details
Ball and pin clevis tow hitch – 50mm tow ball (E approved)
The Maypole ball-and-pin clevis tow hitch is a proper no-nonsense bit of kit — simple, tough and built to do the job without any faff. If you want a robust, reliable connection for trailers or plant equipment, this clevis-style hitch with a 50mm tow ball is a sound choice. It’s E approved and made to recognised standards, so it won’t let you down on the road or out on site.
Key specs
Here are the important bits to check before fitting or buying:
- D-value: 20 kN — a measure of dynamic coupling strength when towing.
- S-value: 350 kg — the static vertical load capacity for the tow ball (noseweight).
- Compliance: Meets Regulation 55 and is E approved — important for legal and safe use.

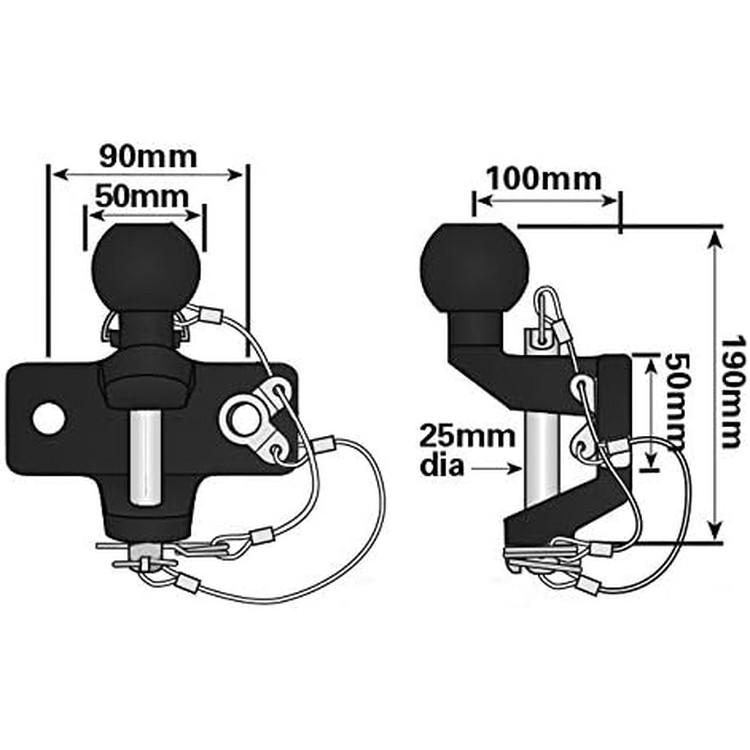

- Mounting: 2 x M16 bolt holes with standard 90 mm fixing centres for straightforward installation.
- Torque: Tighten to 240 Nm when fitting; re-check the torque after the first trip and at regular intervals.
- Finish and code: Silver finish, Manufacturer reference/part no. 084B.
Why choose this hitch?
It’s compact, reliable and built around the basics — no bells and whistles. The standard hole centres and M16 bolts make it easy to mount on most compatible brackets or bars, and the 50 mm ball is a common size that fits plenty of trailers and couplings. The 350 kg S-value suits small to medium loads, while the 20 kN D-value gives confidence in towing dynamics — essentially, it’s practical and dependable.
Typical uses and real-life benefits

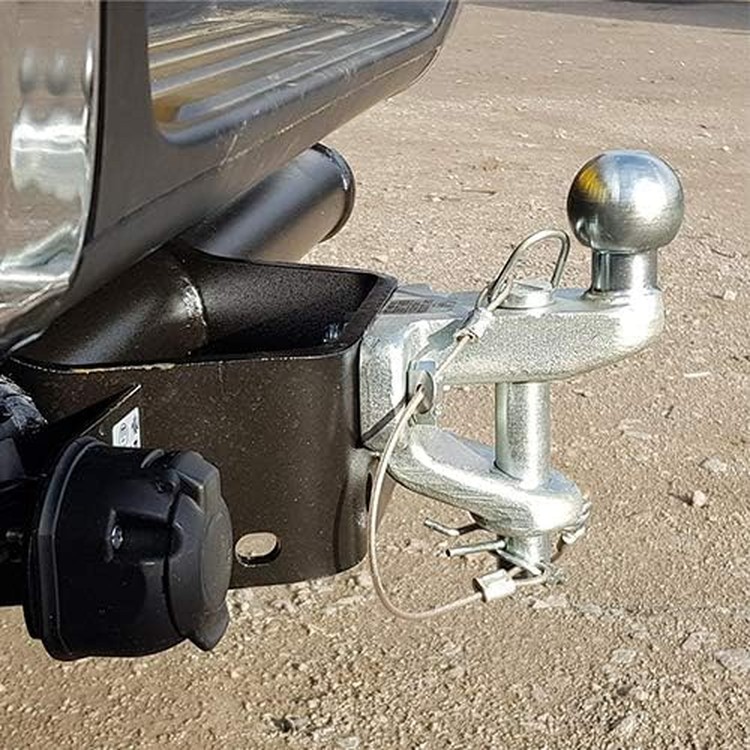

- Attaching small trailers, utility trailers or plant trailers to a towbar-equipped vehicle using a clevis/pin style connection.
- Quick, secure hitch-ups on farms, construction sites or for weekend DIY/hobby jobs — handy when you need to get moving without faffing.
- Ideal for anyone after a tough, low-maintenance part that copes well with damp British weather thanks to the silver finish.
A couple of practical pointers: always check the mounting pattern on your towbar or bracket to ensure the 90 mm centres match, and make sure both the towing vehicle and trailer are rated for the loads you plan to carry. Torque to 240 Nm on installation and give it another check after the first trip — that’s simple but important. If you’re unsure whether the 350 kg S-value is suitable, double-check the trailer’s noseweight and your vehicle’s towing specification first.
Manufacturer details: Maypole, part number 084B. Solid, straightforward kit for anyone who wants a reliable ball & pin clevis tow hitch without any nonsense.
