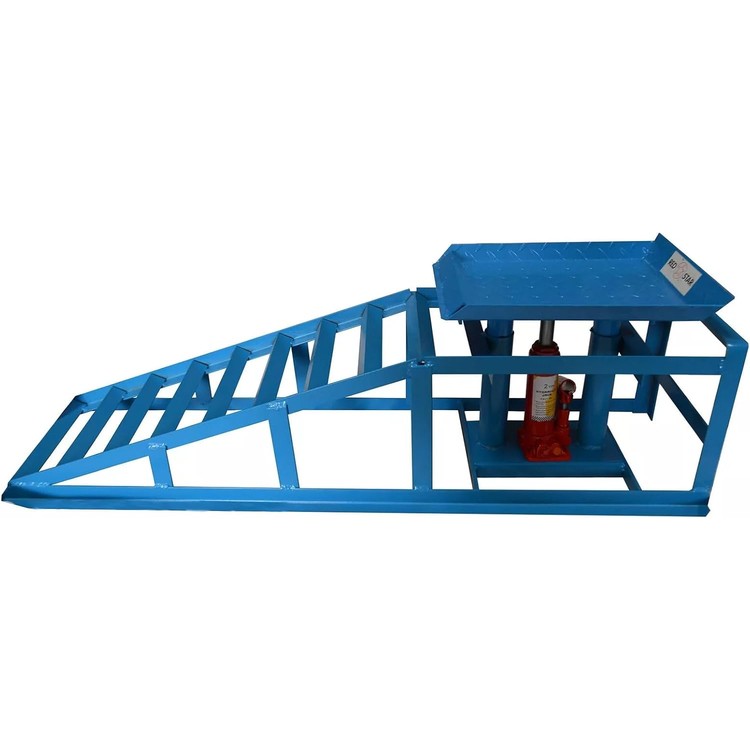

Red star hydraulic car ramps – pair 3000 lb bottle jack ramps
These RED STAR ramps are a straightforward, no-nonsense way to raise the front or rear of a car or van for routine maintenance without faffing about with separate stands. Each ramp has a built-in bottle jack rated at 1,500 lb, giving a combined capacity of 3,000 lb. They’re made from sturdy metal, are fairly long and sit low to the ground, so a lot of slightly lowered cars can drive on without scraping the bumper.
Key features
- Built-in hydraulic bottle jacks – each ramp lifts up to 1,500 lb using the supplied pump bars, so you don’t need to wrestle a separate jack into place.
- Low-angle approach – the longer base reduces the climb angle, which is handy for lowered cars and helps avoid scraping low bumpers.
- Lift and resting heights – 350 millimetres maximum lift and a 250 millimetres resting height give enough clearance for routine checks and light jobs.
- Robust construction – metal build with locking pins included to keep the ramps secure while you work.
- Handy to store – compact enough for a garage and finished in blue so they’re easy to spot.
Specifications
Quick numbers for a swift compatibility check: total load 3,000 lb (2×1,500 lb), maximum lift 350 millimetres, resting height 250 millimetres, length 1,140 millimetres, width 320 millimetres and maximum tyre width around 240 millimetres. Colour shown as blue. Use these specs to make sure your wheels and axle weights match up before buying.
Safety and practical tips
Play it safe and follow a few simple steps. Always apply the handbrake and leave the car in gear (or in Park for automatics). Use wheel chocks on the wheels not on the ramps and ensure the ramp pins are fully engaged. New hydraulic jacks can sometimes need bleeding or a pressure check before heavy use, so give them a dry run at a low lift first. Avoid working alone under a vehicle where possible — it’s best to have someone nearby. These ramps are great for quick oil changes, brake checks and light servicing, but they’re not a substitute for proper axle stands when you’re doing major repairs.
Who will find these useful?
- Home mechanics after a quicker, tidier way to lift a car for routine maintenance.
- Owners of small vans or cars with slightly lowered suspension who struggle with steep, short ramps.
- Garage users who need a portable, built-in-jack solution without lugging extra equipment around.
One thing to bear in mind: these ramps are designed for light vehicles with a 2×1,500 lb limit, so check your vehicle’s weight per axle before use. Also double-check tyre width and ramp dimensions if you run particularly wide tyres. Overall, RED STAR hydraulic ramps are a solid, no-fuss option for most car and light-van jobs — drive on, pump up and you’re sorted.
