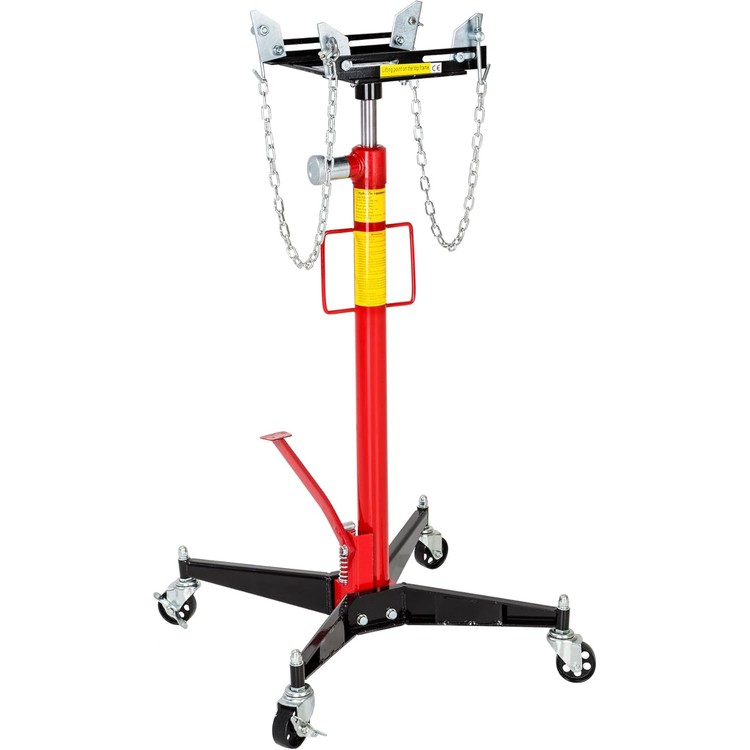

TecTake vertical transmission jack with 500 kg capacity, adjustable height 113–192 cm
If you want to lift and position a gearbox without all the usual faff, this transmission jack will do the heavy lifting — literally. It’ll cope with up to 500 kg and lets you line things up without the awkward juggling. Ideal for a small garage or a keen DIYer: robust, straightforward and up for the job.
Built for heavy lifting

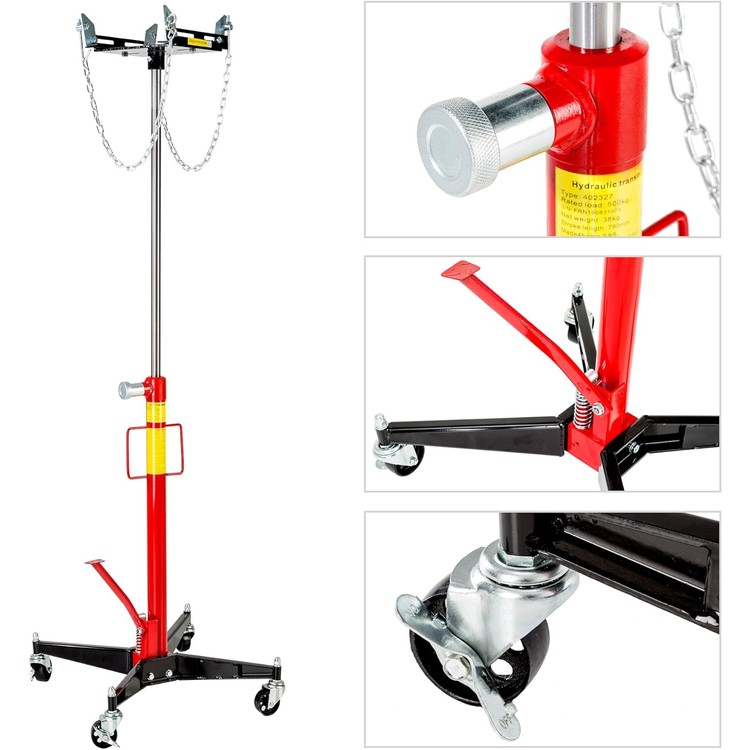

The frame is welded steel and the wide cross base gives proper stability while you manoeuvre underneath the car. A backup safety chain holds the load steady when you’re aligning mountings or tightening bolts, which is a handy bit of peace of mind when access is tight or the job gets greasy.
Smooth, controlled operation
Use the hydraulic foot pedal for quick, hands-free lifting and the hand wheel to lower the platform with stepless, precise control — no sudden drops, no panicked adjustments. That level of control makes lining up gearbox mountings much less of a headache and saves you time on the job.
Practical workshop fit

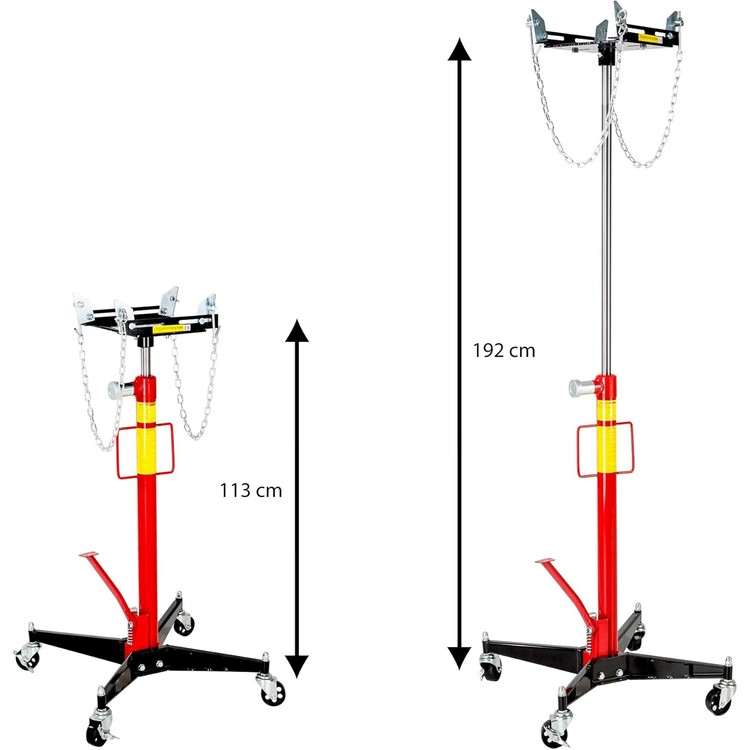

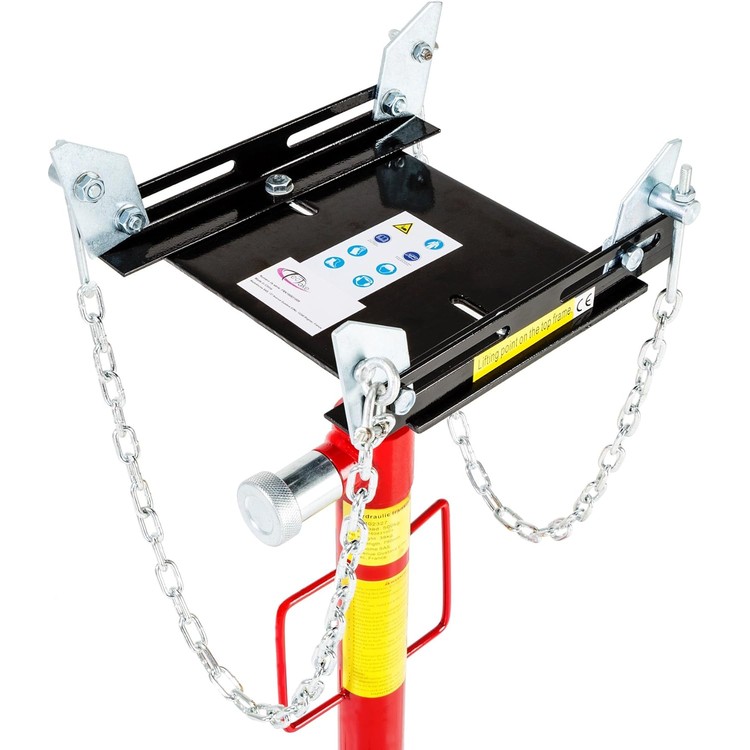

The working height adjusts from 113 to 192 cm, so it’ll suit a range of vehicles and lifting points. The platform is adjustable to match the shape of the unit you’re lifting, and the four 8 cm castors make it easy to wheel around the workshop. Two castors have brakes, so once it’s in place it stays put.
- Perfect for removing and refitting transmissions, gearboxes and other heavy drivetrain parts.
- Handy for garages, mobile mechanics and DIYers who need a simple, safe lifting solution.
- Saves time compared with jacking up and faffing about with improvised supports or stands.
Specifications
- Total dimensions (L × W × H): 84 × 84 × 122 cm.
- Working height range: 113–192 cm (1130–1920 mm).
- Stroke: 79 cm. Platform size: 29 × 23 cm.
- Max load capacity: 500 kg (0.5 tonne). Weight: 38 kg.
- Wheels: 8 cm diameter castors, two with brakes. Backup chain length: 80 cm.
- Material: Steel. Model number: 402327.
Bear in mind this jack won’t fit under every car — it’s worth checking your vehicle’s clearance and the specific component you need to support before you buy. Also, it’s intended to be used alongside proper vehicle supports (axle stands or similar), not as a replacement for them. All told, it’s a practical, no-nonsense transmission jack that helps you lift, position and lower heavy components with more confidence and less hassle.
