Have you ever popped the bonnet and stared at your car’s engine bay, maybe just to check the oil or out of sheer curiosity? Odds are, the first thing that caught your eye was the battery – a plain-looking box that quietly does the heavy lifting every time you turn the key or press the start button. But here’s something most people miss: those chunky little metal posts sticking out of the top or side. That’s right, the battery terminals.
It’s funny – these unsung heroes barely get a second thought until something goes wrong. But without a solid connection at those terminals, your car might as well be a very expensive lawn ornament. No juice, no start, no fun.
So why do these tiny parts matter so much, and how do you keep them in good shape? In this guide, I’ll break down the types of battery terminals you’re likely to encounter, what sets them apart, how to look after them, and some hard-earned tips from years of tinkering under the hood. Let’s make sure your car gets all the power it needs, every time.
What Are Battery Terminals and Posts?
Let’s break it down: your car’s battery is the main power source, but it can’t do much on its own. To get that energy flowing where it needs to go – like the starter motor, headlights, or even your windscreen wipers – you need a solid, reliable bridge. That’s where battery posts and terminals step in.
Battery Post. This is the metal piece that sticks out of the battery case. This is where the electrical current actually comes into contact.
Battery Terminal. This is the metal connector that attaches to the post, allowing the electrical cable from your car or device to connect.
When these two – post and terminal – are clean, tight, and making good contact, your car gets all the power it needs, right when you need it. But if the connection is dodgy? You might find yourself stranded with a car that simply won’t start. That’s why keeping this “bridge” in top shape is so important – not just for convenience, but for the health of your whole electrical system.
Why Do Battery Terminals Matter So Much?
It’s easy to overlook battery terminals as just a couple of hunks of metal, but don’t be fooled – their job is huge.
First off, power efficiency. Good, clean terminals mean your battery can deliver energy exactly where it’s needed, without anything getting lost along the way. At 0 °C (32 °F), a car’s battery loses about 35 % of its strength; at –18 °C (0 °F), it loses about 60 %. Ever had your car hesitate or struggle to start on a chilly morning? Sometimes, it’s not the battery’s fault – it’s a dodgy connection at the terminal.
Then there’s safety. Poor or loose terminals can heat up, throw sparks, or even start to corrode. In the worst case, that can lead to electrical shorts or damage to important parts under the hood. Some newer terminals even have clever features built in, like arc suppression or warnings if you’ve hooked things up the wrong way.
And don’t forget battery life. Solid, well-made terminals help keep rust and corrosion at bay, so your battery (and the terminals themselves) will last longer. It’s a small thing with a big impact.
If you want your car to start reliably and run smoothly – and if you’d rather avoid any nasty surprises on the road – give those battery terminals a little respect. Their condition has a direct say in how well your car performs, and for how long.
The Most Common Types of Battery Terminals
Walk into any garage or pop open enough car bonnets, and you’ll notice there’s more than one kind of battery terminal out there. Manufacturers have come up with all sorts of designs to fit different vehicles and uses. Here are the ones you’re most likely to bump into:
Automotive Posts (SAE Terminals)
These are the classic “cone-shaped” posts sticking up from the top of most car batteries. Here’s a handy tip: the positive post is always slightly fatter than the negative. That’s no accident – it’s designed to stop you from mixing up the connections. The terminals themselves usually clamp on tightly with a bolt to keep everything snug.
JIS (Japanese Industrial Standard) Posts (Pencil Posts)
Think of these as the SAE’s smaller cousin – same general shape, just scaled down. You’ll spot them most often on older Japanese cars. As with the SAE, the positive is bigger than the negative.
Side Post Terminals
Instead of sticking out on top, these are tucked away on the side of the battery, held in place by a bolt that screws straight into the casing. You’ll run into these mostly on some General Motors vehicles. They’re a bit less exposed to the elements, so they’re less likely to get crusty with corrosion.
Stud Terminals
These are basically threaded bolts (usually 3/8″ or 5/16″ thick) sticking out, waiting for a ring terminal and nut to hold the cable tight. They’re built for business – think trucks, heavy machinery, or marine batteries – where you want a connection that absolutely won’t come loose.
Dual Post Terminals (Marine Terminals)
Here’s a clever one: you get both an SAE post and a stud on the same battery. That means you can attach cables with either the standard clamp or a ring-and-nut setup. Super useful for boats, where there might be more than one power cable. They’re often made from brass or stainless steel, so they can handle salty sea air.
Button Terminals (Insert Terminals)
You might have to look closely for these – small, flat, and featuring a threaded hole (usually labeled M5 to M8 for the metric bolt size). You’ll see them on specialty batteries, like those used in emergency lights or backup power supplies.
L Terminals
These look like a little metal “L” with a hole at one end. Common on smaller batteries, such as for motorcycles, lawnmowers, or certain European cars.

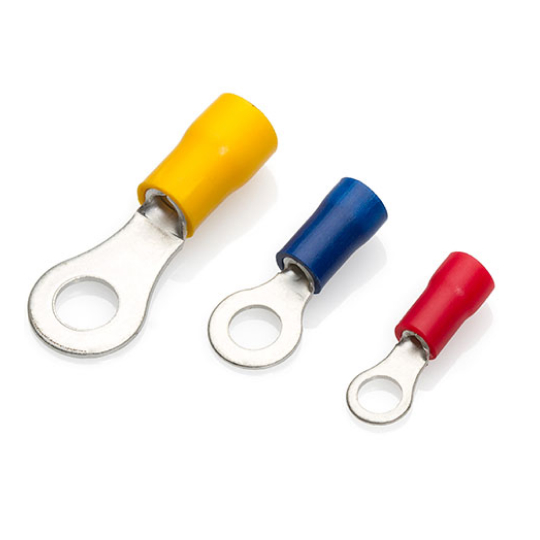

Ring Terminal Connectors
These are round, ring-shaped connectors that are bolted to battery posts or studs. They provide a secure and permanent connection. They are used in cars, boats, and electrical systems where connections need to last a long time and be trustworthy, especially in places where there is a lot of vibration.
So, which terminal do you need? It all depends on what you drive, what kind of battery you’ve got, and sometimes even the weather you’re dealing with. If in doubt, a quick check of your owner’s manual (or a peek at your old battery) will steer you right.
Common Issues with Battery Terminals
- Corrosion Creep. That chalky white or green haze isn’t just ugly – it’s acid and moisture ganging up to choke your power flow. I once spent half an hour frantically cranking the key, only to discover a fine layer of rust was the culprit. Nip it in the bud with a quick scrub before it turns into a tow-truck call.
- Slippery Connections. Picture a limp handshake – that’s your battery with a loose clamp. One wiggle and your headlights flicker, your dash goes dark, or worse, nothing happens when you turn the key. A firm twist with a wrench usually fixes it in seconds.
- Battle-Scarred Posts. Dropped your socket wrench? Over-tightened until the metal flexed or cracked? Even a small nick or bend can force electrons to take the scenic route – bad news for your car’s starting mojo. Give your posts a once-over for dents or fractures.
Keep an eye on these troublemakers, and you’ll save yourself from more than a few roadside headaches.
Giving Your Battery Terminals a Fresh Start
Spotted that crusty white or green gunk on your battery posts? Don’t sweat it – you can tackle it in under 15 minutes with stuff you probably have at home. First off, suit up with safety glasses and gloves. Then, with a spanner in hand, loosen the black (negative) cable and slide it off, followed by the red (positive) one. Next, stir a tablespoon of baking soda into a cup of warm water – this fizzy mix neutralizes the acid on contact. Dip a sturdy brush (even an old toothbrush will do) into the solution and work it over the posts and terminals until they gleam. Wipe away the residue with a damp rag, then let everything air-dry or give it a quick blast of compressed air.
When you’re ready, clamp the red cable back on first, tightening just enough to feel solid (think “firm handshake,” not “frozen vise”). Follow with the black cable. If you want to go the extra mile, hit the terminals with a smear of anti-corrosion grease or drop in a felt washer treated with inhibitor – it’s like sunscreen for your battery, keeping harmful acid vapors at bay.
Keeping Corrosion from Crashing Your Party
The best fix is prevention. Once every few months – say, while you’re topping up fluids – take a peek at your terminals. If you spot any powdery buildup, give them a quick scrub. Swapping to AGM or gel batteries can help, too (they’re kinder on their connectors), and choosing copper or brass terminals over plain lead means less rust in the long run. A light spray of protective coating or a dab of petroleum jelly goes a long way, saving you a tow-truck visit down the road.
When It’s Time to Swap Out Your Terminals
After a few years or tens of thousands of miles, you might notice the metal looking more like coral reef than a connector – if your scrub and neutralizer solution can’t budge the corrosion, it’s toast. Likewise, any cracked, bent, or mangled bits spell trouble; a terminal that’s lost its shape simply can’t grip the battery post properly.
You’ll also know it’s replacement o’clock if your car starts playing hard to get – hesitating on cold mornings, flickering lights, or mysterious electrical gremlins can all trace back to a failing connection. While some experts say good terminals can soldier on for 50,000–100,000 miles, that number depends on your driving conditions and maintenance habits. A quick glance every few months – just lift the hood while you top up your washer fluid – and you’ll catch most problems before they strand you roadside.
Wrapping It Up
Don’t let those unassuming metal posts fool you – they’re the unsung heroes under your hood. Battery terminals are the vital bridge carrying every spark of energy from your battery to the rest of your car. And whether you’re driving a compact hatchback or a heavy-duty pickup, knowing which terminal fits your setup – and how to keep it in tip-top shape – makes all the difference between a smooth morning start and a tow-truck headache.
Corrosion, loose clamps, or bent posts can sneak up on you, turning a simple drive into a dead-battery drama. A little TLC – regular visual checks, a quick scrub when needed, and a dab of protective grease – goes a long way. Treat your terminals right, and they’ll reward you with dependable starts, longer battery life, and the peace of mind that comes with knowing your car won’t let you down.
